Why We Must Copy Your Original Software

If you drive a VW, Audi or SEAT with a 7-speed DSG (DQ200) gearbox, you already know one thing — when it gives trouble, it gives proper trouble.

Flashing PRNDS.
No drive.
Jerking between gears.
Random limp mode.

And then the question we hear almost daily at MVA Spares:

“Why can’t I just fit the new DQ200 TCU board and drive?”

Short answer?
Because this isn’t a light bulb. It’s the gearbox’s brain.

Let’s unpack it properly.

What Is the DQ200 TCU Board?

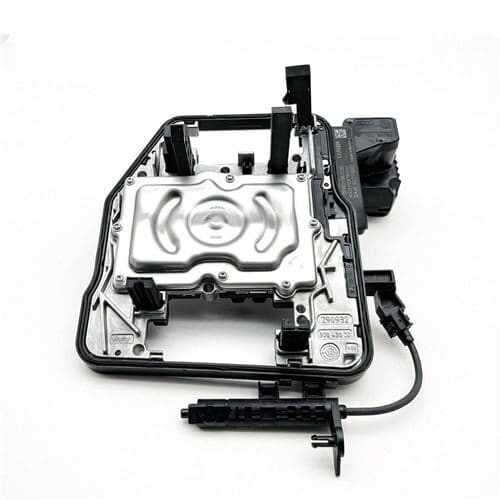

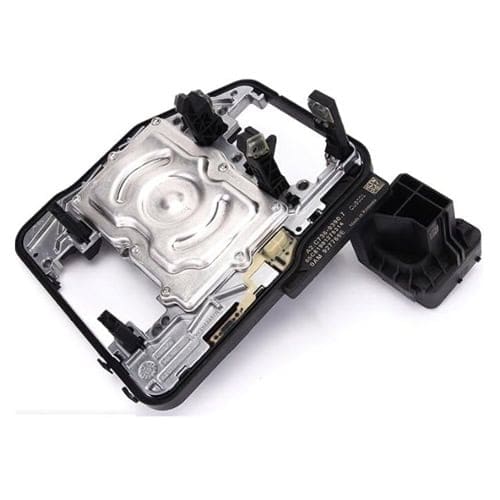

Inside your DSG mechatronic unit sits the TCU (Transmission Control Unit) board.

This circuit board controls:

  • Gear shifts
  • Clutch engagement
  • Hydraulic pressure
  • Torque management
  • Safety strategies
  • Limp mode activation

In simple terms: it tells your gearbox what to do, how to do it, and when to do it.

When the board fails (very common on DQ200 units, especially in local driving conditions), the vehicle starts showing gearbox-related faults and driveability issues.

The Software Is Not Generic

Even though thousands of vehicles use the DQ200 gearbox, the software inside each TCU is vehicle-specific.

It’s calibrated for:

  • Engine type (1.2 TSI vs 1.4 TSI vs 1.6 TDI, etc.)
  • Torque output
  • Vehicle weight
  • Model year
  • Emissions setup
  • ECU pairing
  • Clutch characteristics

Two vehicles may both have a “DQ200”, but their software can be completely different.

That’s why a replacement board is not plug-and-play.

What Happens If You Don’t Copy the Original Software?

If a blank or incorrectly programmed board is installed, you can experience:

  • Flashing PRNDS
  • No drive or stuck in neutral
  • Limp mode
  • Harsh or delayed engagement
  • Incorrect gear selection
  • Clutch overheating warnings
  • Fault codes that won’t clear
  • Failed DSG adaptation

We’ve seen it many times — the hardware is new and perfectly fitted, but the car still refuses to behave. Not because the board is faulty, but because the software doesn’t match the vehicle.

Why We Copy the Software From Your Original Board

Your original TCU board — even if it’s faulty — usually still contains:

  • The correct firmware
  • The exact calibration file
  • Vehicle coding
  • Adaptation data
  • VIN-linked information (depending on model)

By copying that data onto the replacement board, we ensure:

✔ The gearbox behaves exactly as factory intended
✔ No compatibility surprises
✔ Reduced need for expensive dealership programming
✔ Lower risk of immobiliser or component protection issues
✔ Higher first-time installation success

Think of it like replacing a computer’s motherboard — without transferring the data, it powers up, but it doesn’t function correctly.

What If the Original Board Is Missing?

This is important.

If the customer no longer has the original board — for example, it was:

  • Thrown away
  • Water damaged beyond recovery
  • Previously replaced
  • Completely unreadable

Then the vehicle-specific data cannot be copied.

In this case, the replacement board will need to be coded online to pull the correct vehicle data from the manufacturer’s system.

This process typically involves:

  • Online dealer-level coding
  • Accessing factory servers
  • Pulling VIN-specific configuration
  • Re-pairing the TCU to the ECU and immobiliser system

The vehicle would need to be referred to a workshop with proper online coding capability.

Without either:

  1. The original software, or
  2. Proper online coding

The board cannot function correctly in the vehicle.

There’s unfortunately no shortcut around that.

Why This Matters in South Africa

Let’s be honest — DSG repairs are not cheap.

Dealer programming can add significant cost and downtime. Vehicles often sit for days waiting for bookings or online access.

By transferring the original software where possible, we help keep the repair:

  • Faster
  • More cost-effective
  • More reliable

And that’s what most South African workshops and vehicle owners actually want — a proper fix, not guesswork.

Common DQ200 Failure Symptoms We See Locally

  • Flashing PRNDS
  • No reverse
  • Gearbox stuck in neutral
  • Jerking when pulling off
  • Random limp mode
  • Mechatronic pressure faults
  • Communication errors

If you’re experiencing any of the above, there’s a strong possibility the TCU board is involved.

The Bottom Line

A DQ200 TCU board is not just hardware.

It’s software-driven, vehicle-specific, and factory-coded to your car.

That’s why copying your original software isn’t optional — it’s essential.

And if the original board is unavailable, proper online coding becomes necessary to ensure correct operation.

Need Help With a DQ200 TCU Board?

At MVA Spares, we supply DQ200 TCU boards and assist with software transfer to ensure compatibility with your vehicle.

Before contacting us, please have:

  • Vehicle make & model
  • Year
  • Engine type
  • Gearbox code (if available)
  • Mechatronic part number
  • Fault codes (if scanned)
  • Confirmation whether you still have the original board

The more information you provide, the quicker and more accurately we can assist.
