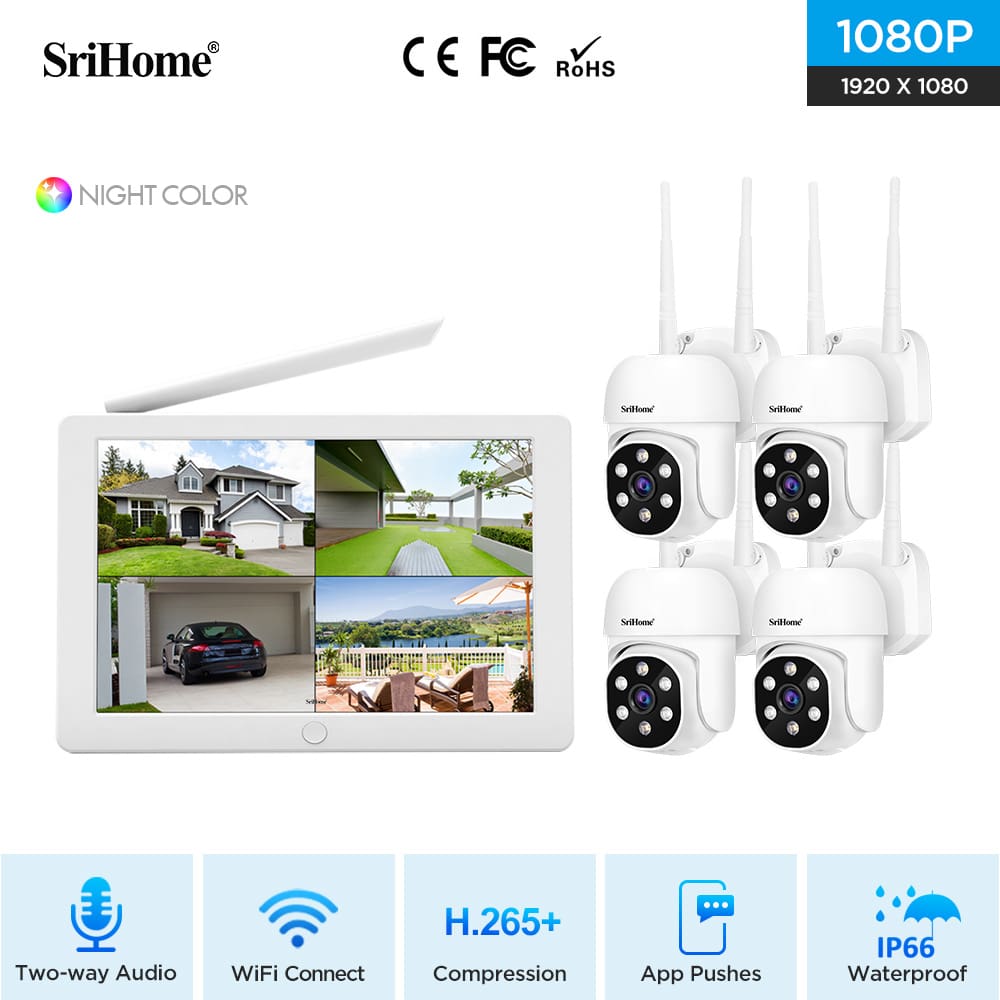

NVS009 Wireless CCTV Camera System with 10.1″ LCD Monitor

4-Channel Expandable WiFi NVR Kit • Two-Way Audio • AI Motion Detection

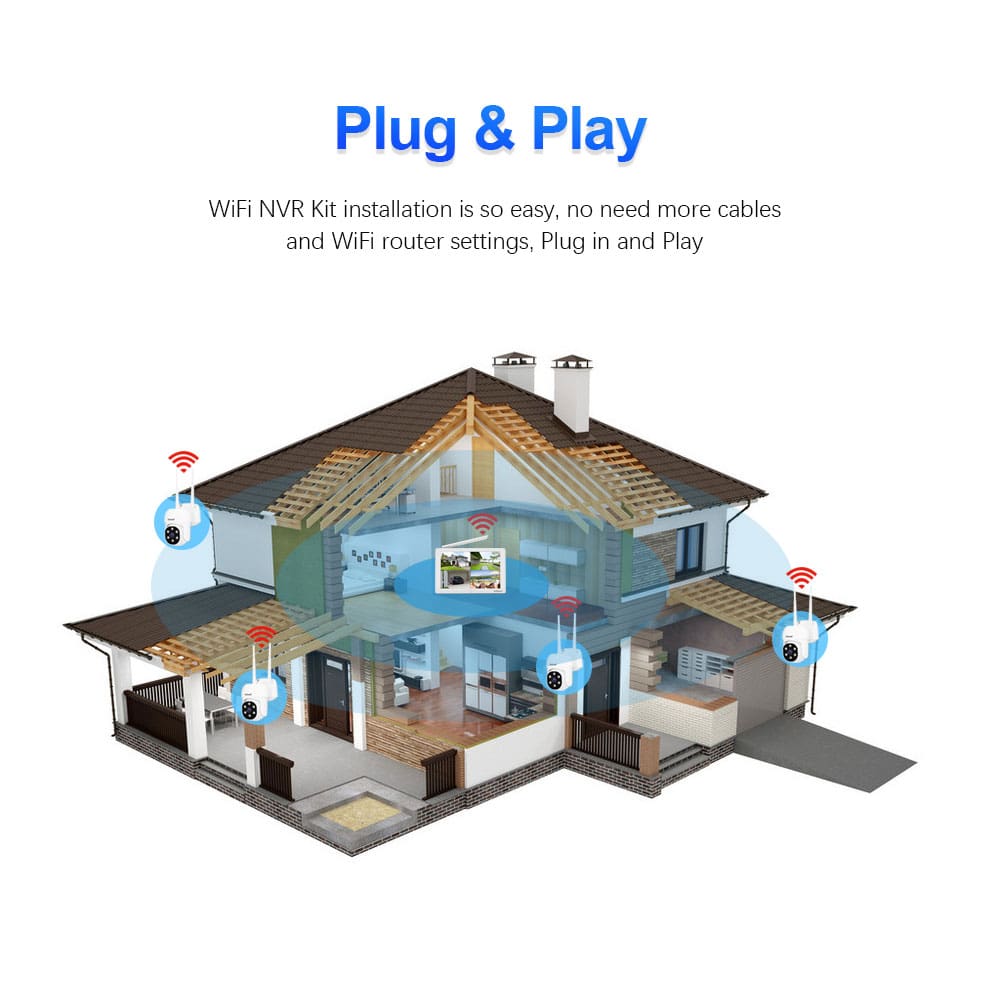

Secure your home or business with the NVS009 Wireless CCTV System, an all-in-one smart surveillance solution featuring a 10.1-inch HD LCD monitor, AI humanoid detection, and wireless cameras with two-way audio. Designed for easy installation, remote access, and reliable performance indoors or outdoors.

Key Features

• 10.1″ HD LCD Monitor with built-in WiFi NVR
• 2MP Full HD Cameras (1080P) with night vision
• Expandable up to 8 wireless cameras
• AI humanoid tracking & motion detection
• Two-way audio (built-in microphone & speaker)
• Wireless bridge mode – WiFi range up to 60m
• H.265 video compression for efficient storage
• Supports up to 16TB (2.5″ SATA HDD / SSD – not included)
• Mobile app access (live view, playback, alerts, intercom)
• IP66 waterproof cameras – indoor & outdoor use

WiFi NVR Specifications

Model: NVS009 (WiFi NVR)

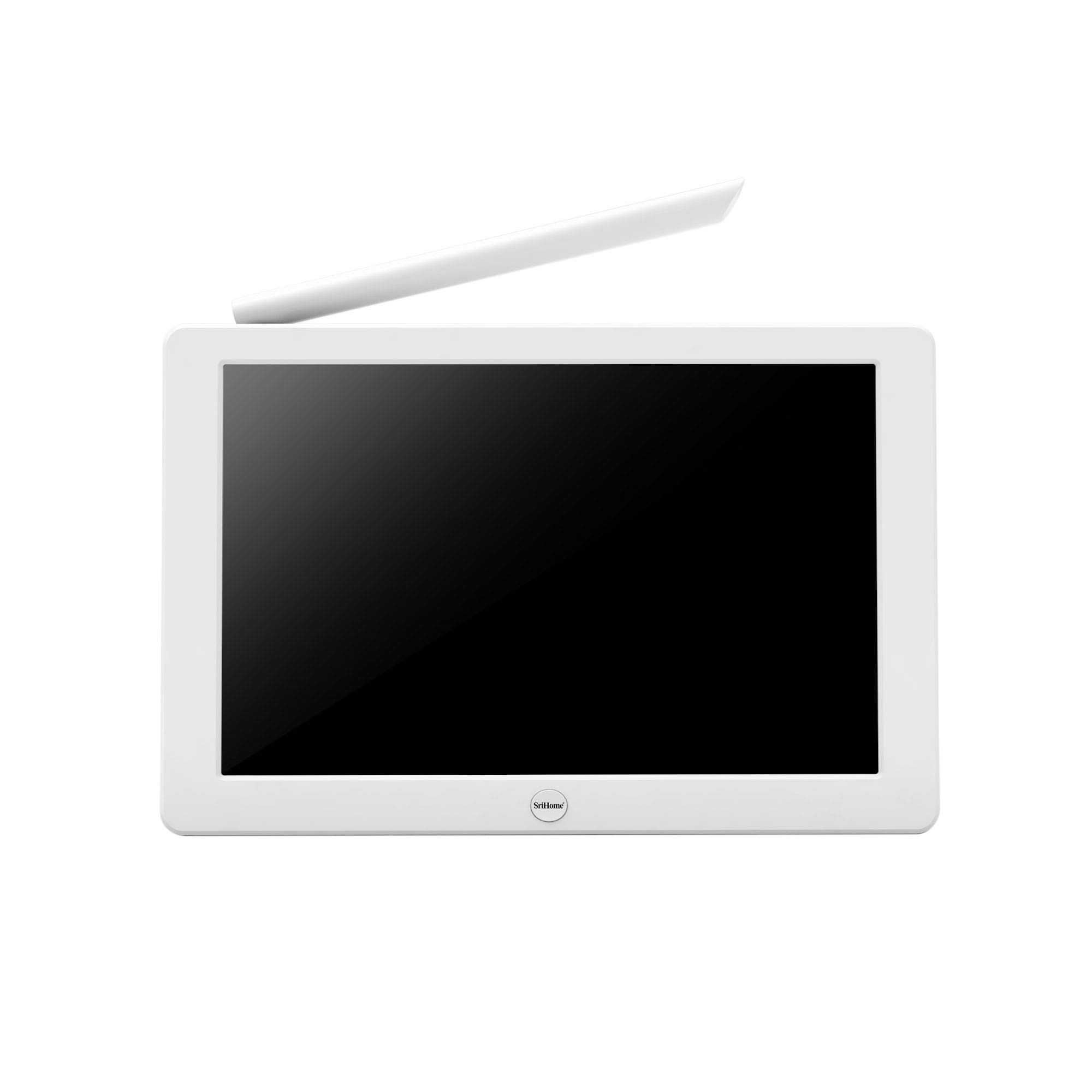

Display

• Screen Size: 10.1″ LCD
• Resolution: 800 × RGB(3) × 1280

Video

• Video Input: 8 Channels
• Video Output: 1 × HDMI, 1 × VGA
• Compression: H.265 / H.264 / Smart264
• Encoding: 8 × 2MP @ 25fps
• Decoding:
  • Main Stream: 1 × 5MP @ 25fps
  • Sub Stream: 8 × D1 @ 25fps

Audio

• Two-way audio supported
• Built-in microphone & speaker
• Audio Output: HDMI + 1 × AUX
• Audio Format: G.711U / AAC

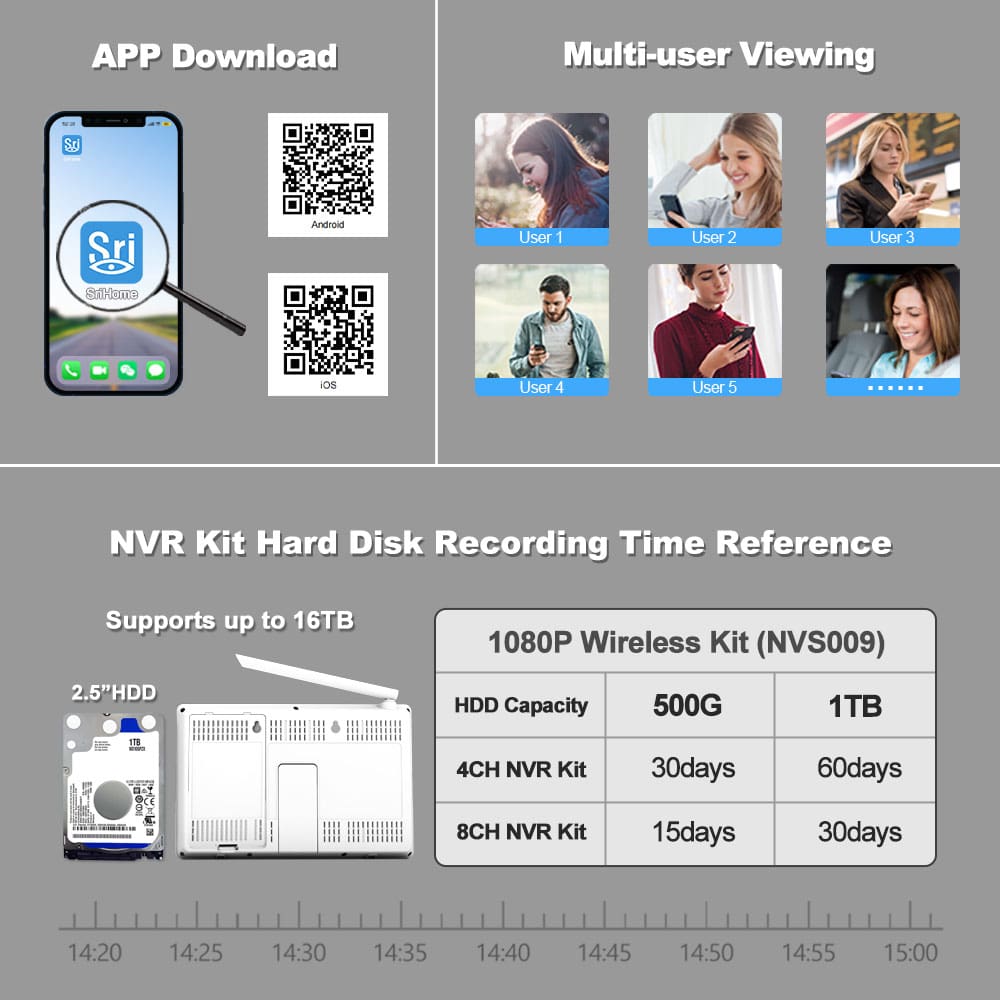

Storage

• Interface: 1 × SATA (2.5″ HDD / SSD only)
• Max Capacity: Up to 16TB

Recording & Playback

• Recording Modes: Scheduled & Alarm Recording
• Playback: Local & App Playback
• Backup: General Backup

Network

• WiFi: 2.4GHz (camera connection only)
• LAN: RJ45 Ethernet
• Network Protocols: DHCP, DNS, DDNS, NTP, UPNP

Alarm

• Motion Detection Alarm
• AI Humanoid Detection
• App Push Notifications & Audible Alarm

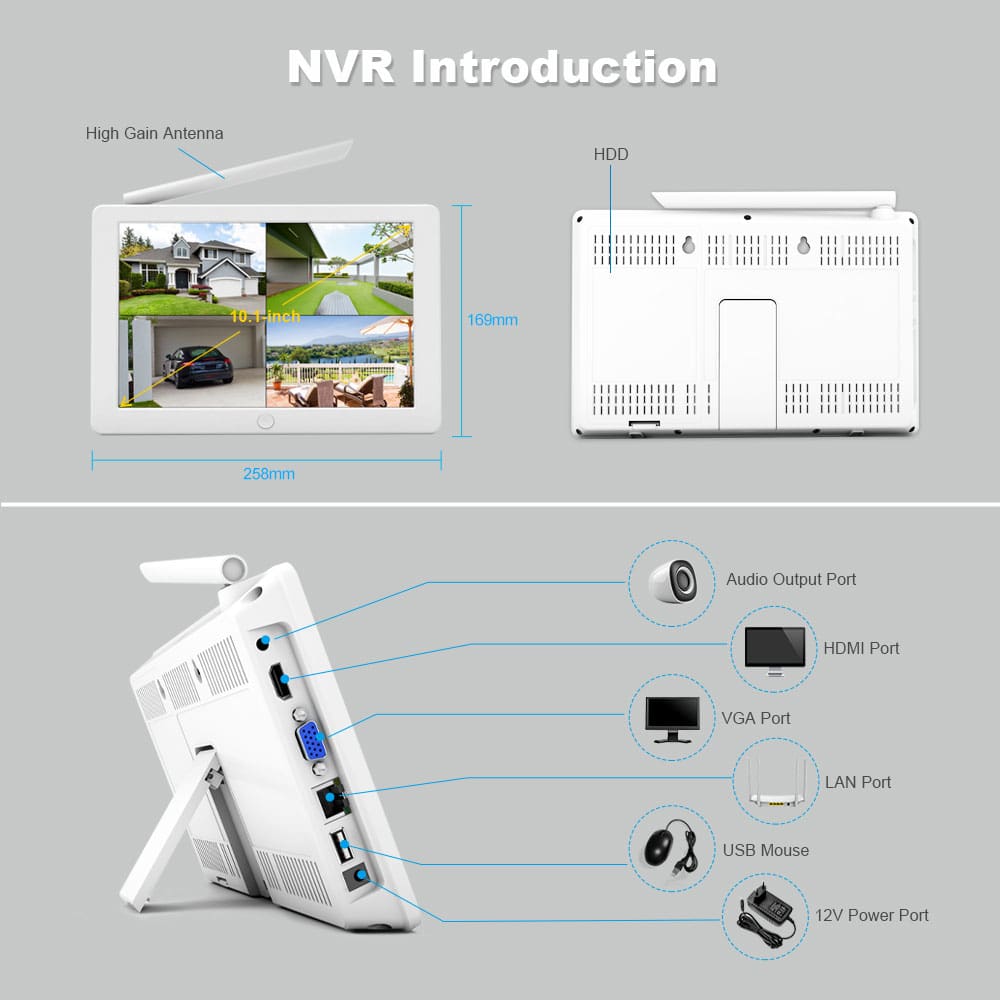

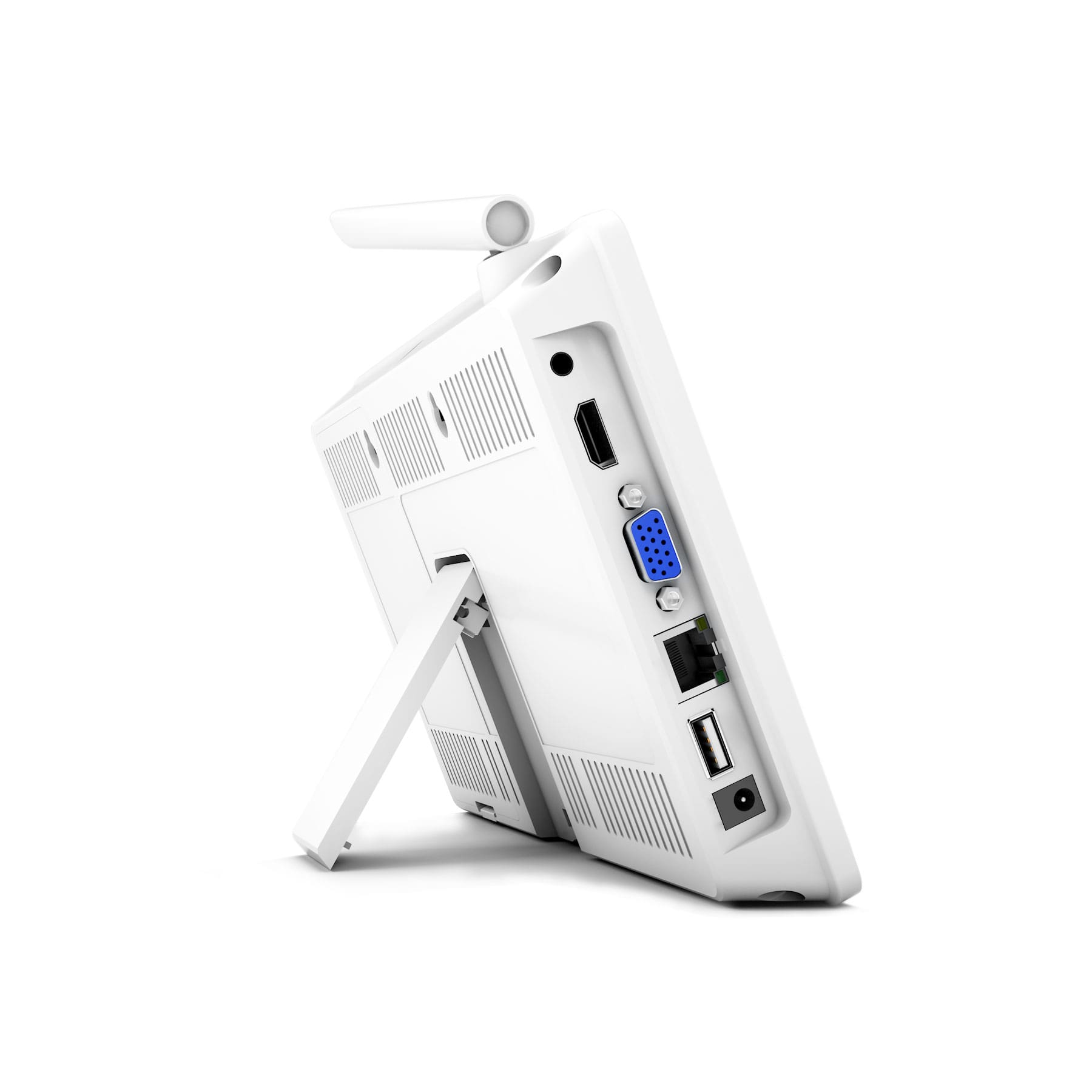

Interfaces

• USB: 1 × USB 2.0
• HDMI: 1
• VGA: 1
• Audio: 1 × AUX
• Power: DC 12V 2A (5.5 × 2.1mm)

App Support

• SriHome App
• iOS & Android remote access

Wireless Camera Specifications

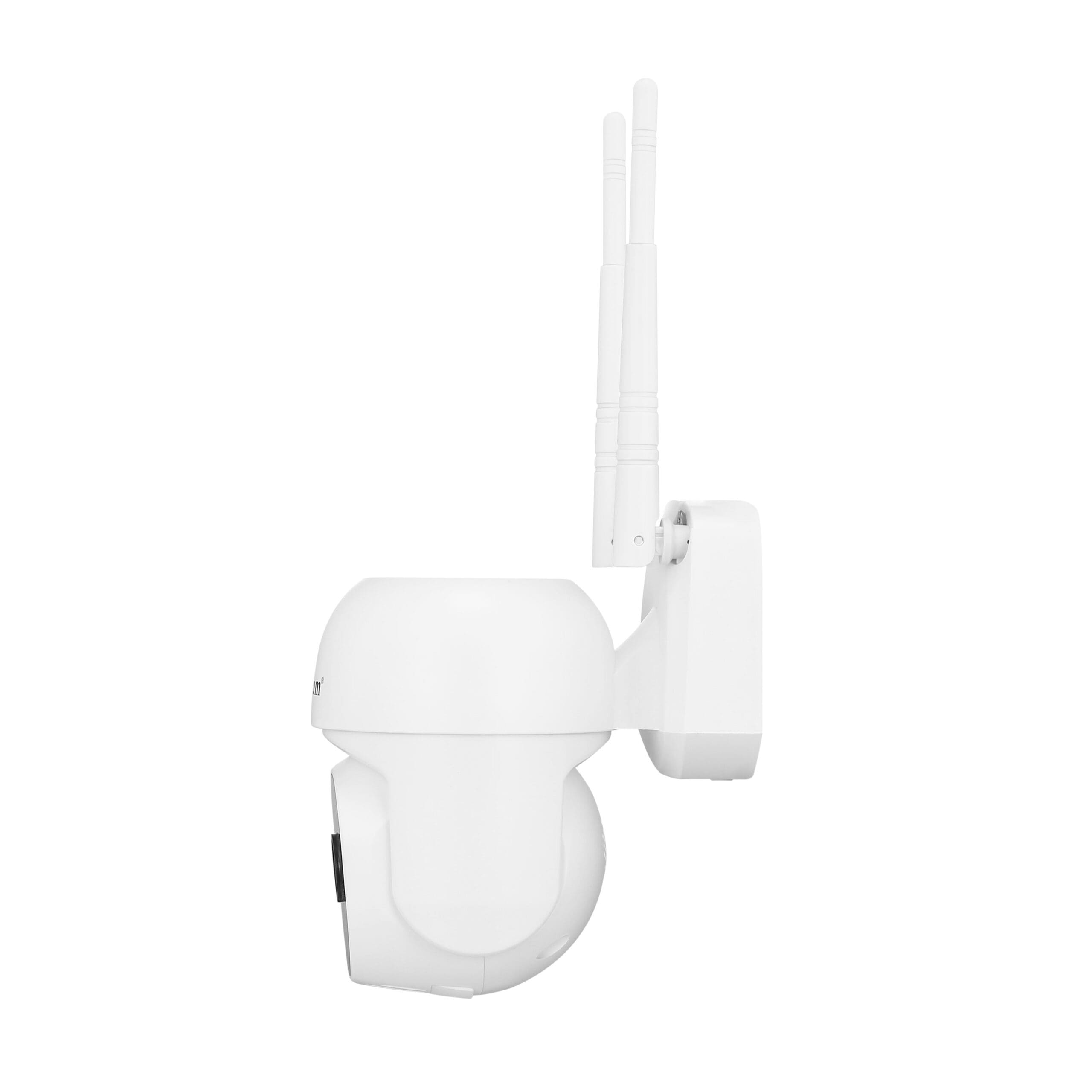

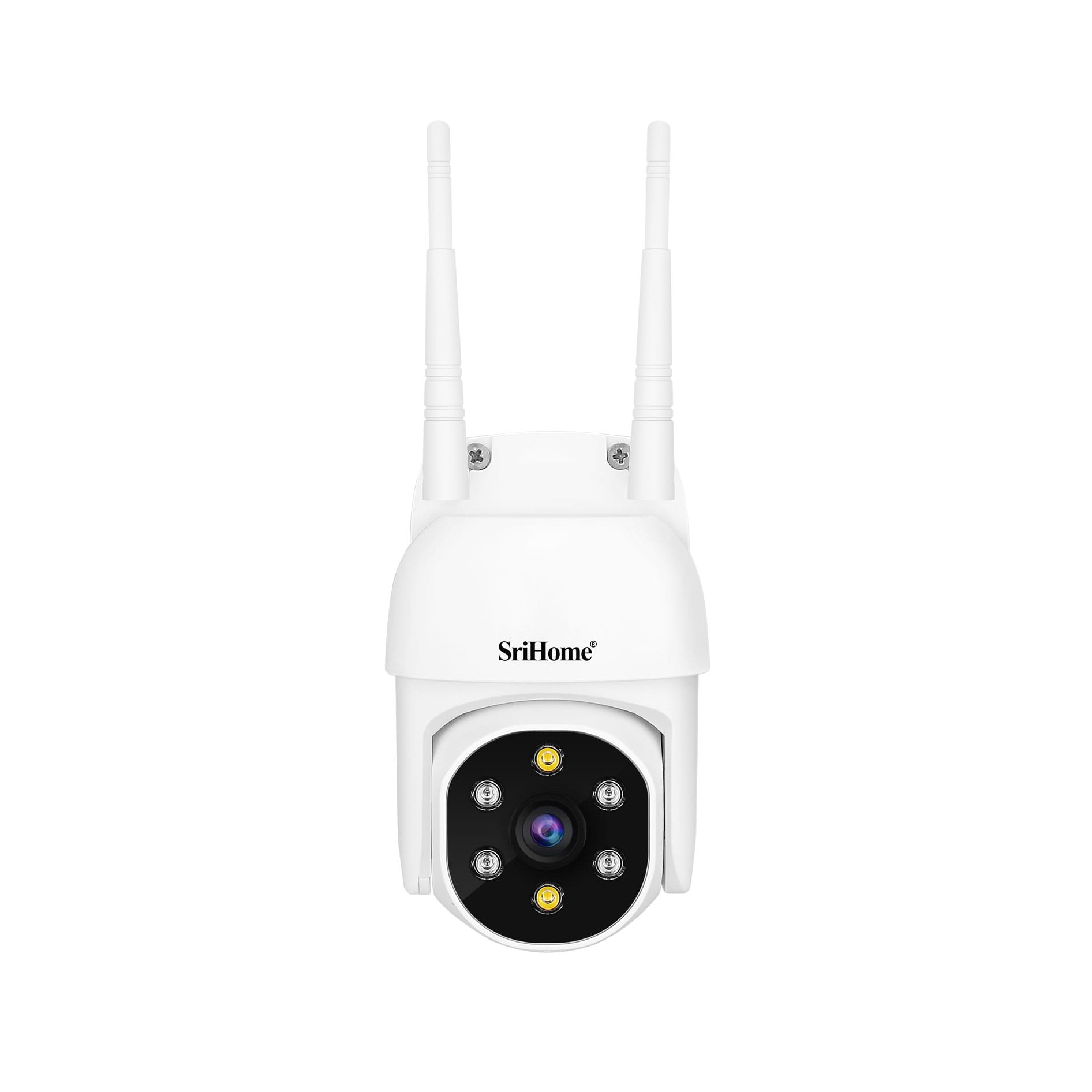

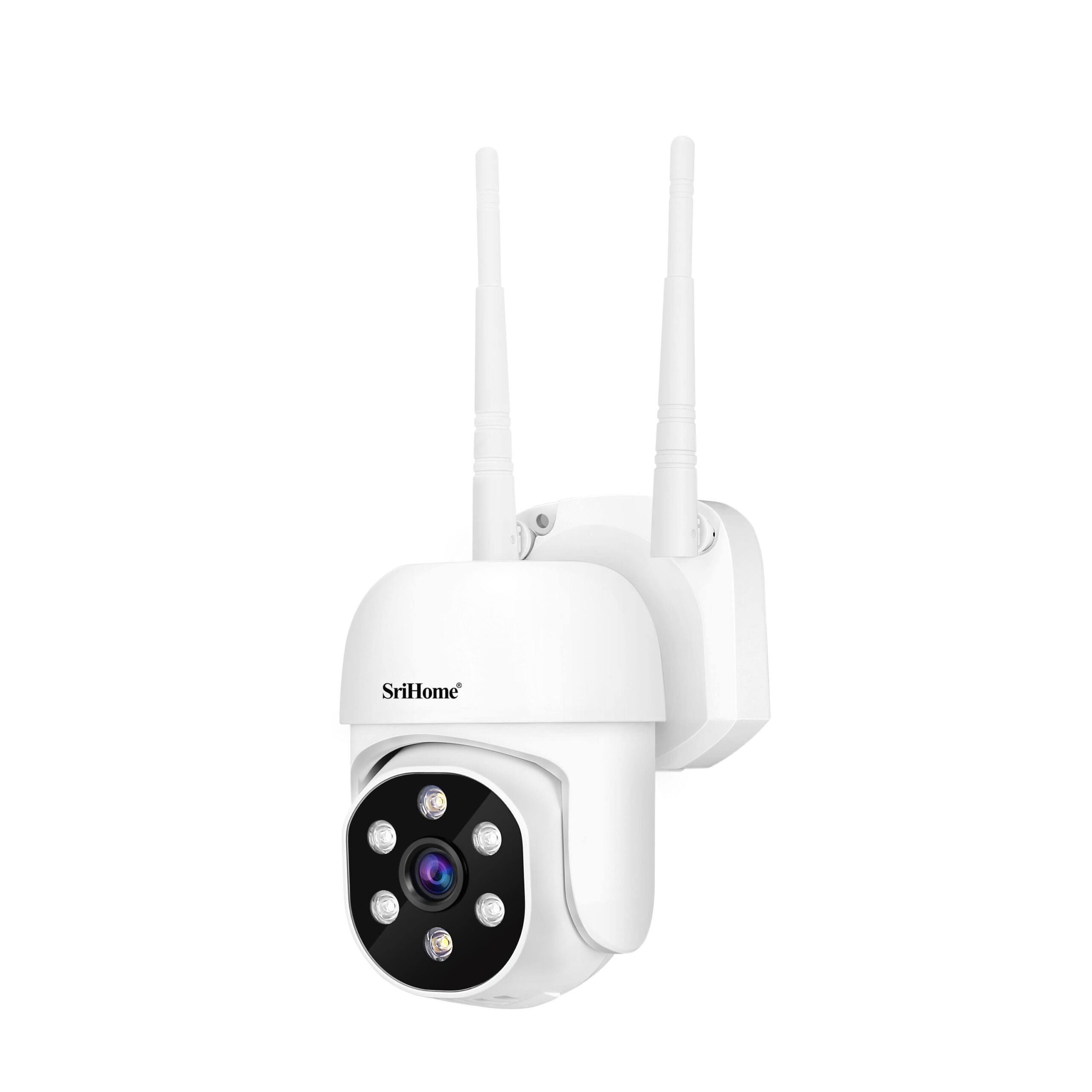

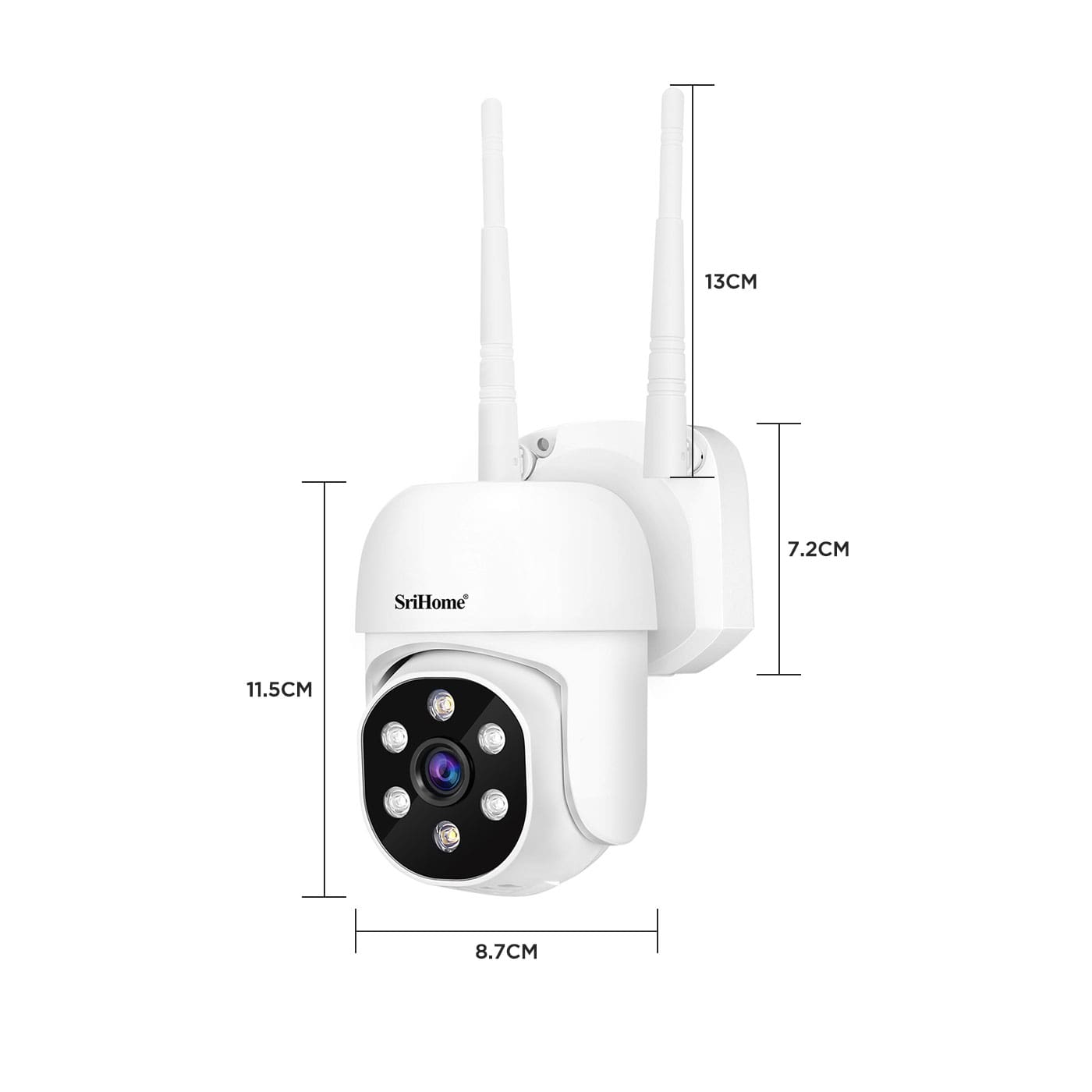

Model: IPC030 (1080P WiFi Camera)

System

• Processor: Multi-core high-speed processor
• Sensor: 1/2.7″ 2MP HD CMOS
• Compression: H.265

Lens & Video

• Lens: 4mm
• Viewing Angle: D: 98° | H: 80° | V: 58°
• Resolution: 1080P (1920×1080) / VGA
• Frame Rate: 15fps
• IR-Cut: Automatic (no color distortion)

Night Vision

• Default: Black & White Night Vision
• Alarm Trigger: White light activates full-color night vision
• Adjustable brightness
• Infrared mode available

Audio

• Built-in microphone & speaker
• Two-way audio supported
• Audio Format: G.711

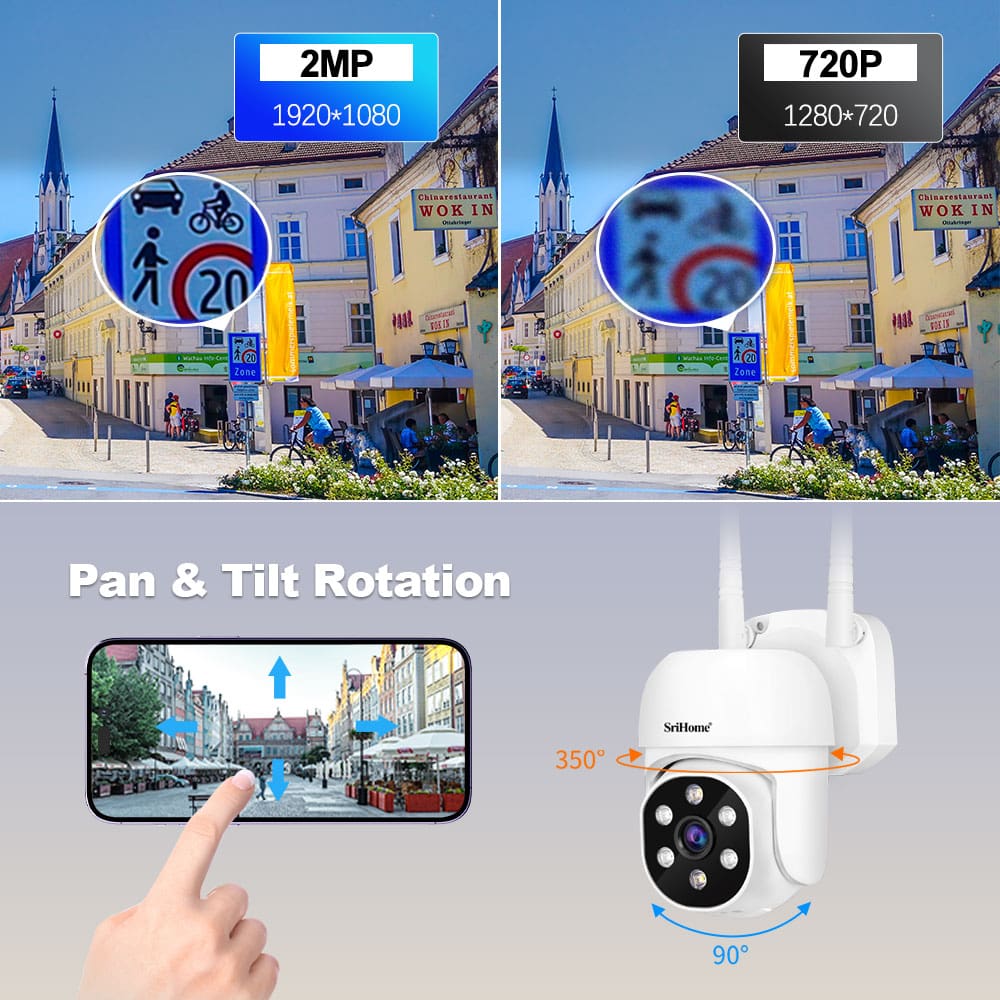

Pan & Tilt

• Horizontal: 350°
• Vertical: 90°
• AI humanoid tracking supported

Wireless

• 2.4GHz WiFi (connects to NVS009/NVS011 host only)
• Pairing: QR code or reset button

General

• Material: Plastic PTZ Camera
• Use: Indoor & Outdoor

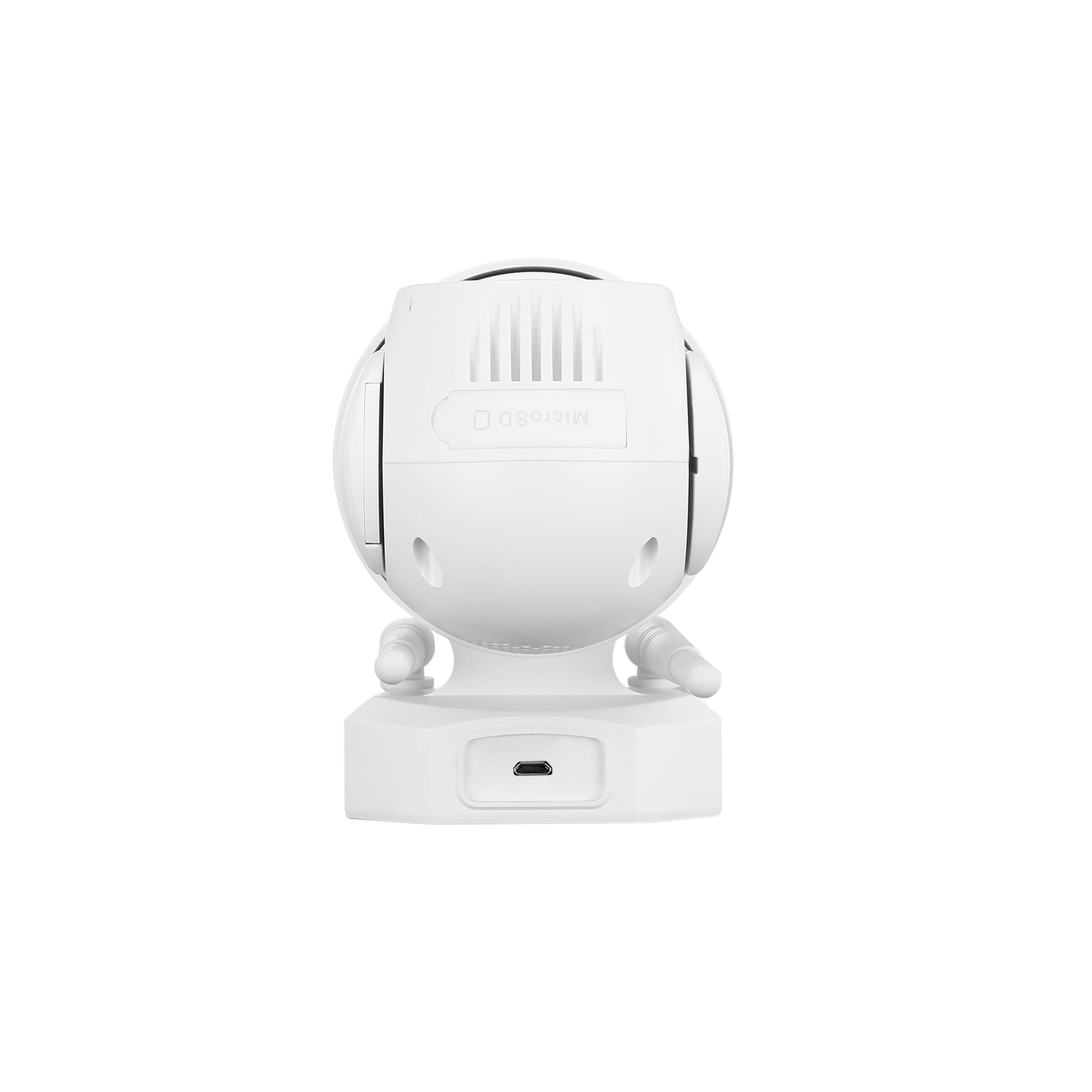

• Power: 5V Micro-USB
• Operating Temp: -10°C to 50°C
• Weight: 235g
• Size: 100 × 65 × 65mm
• Waterproof Rating: IP66

What’s in the Box

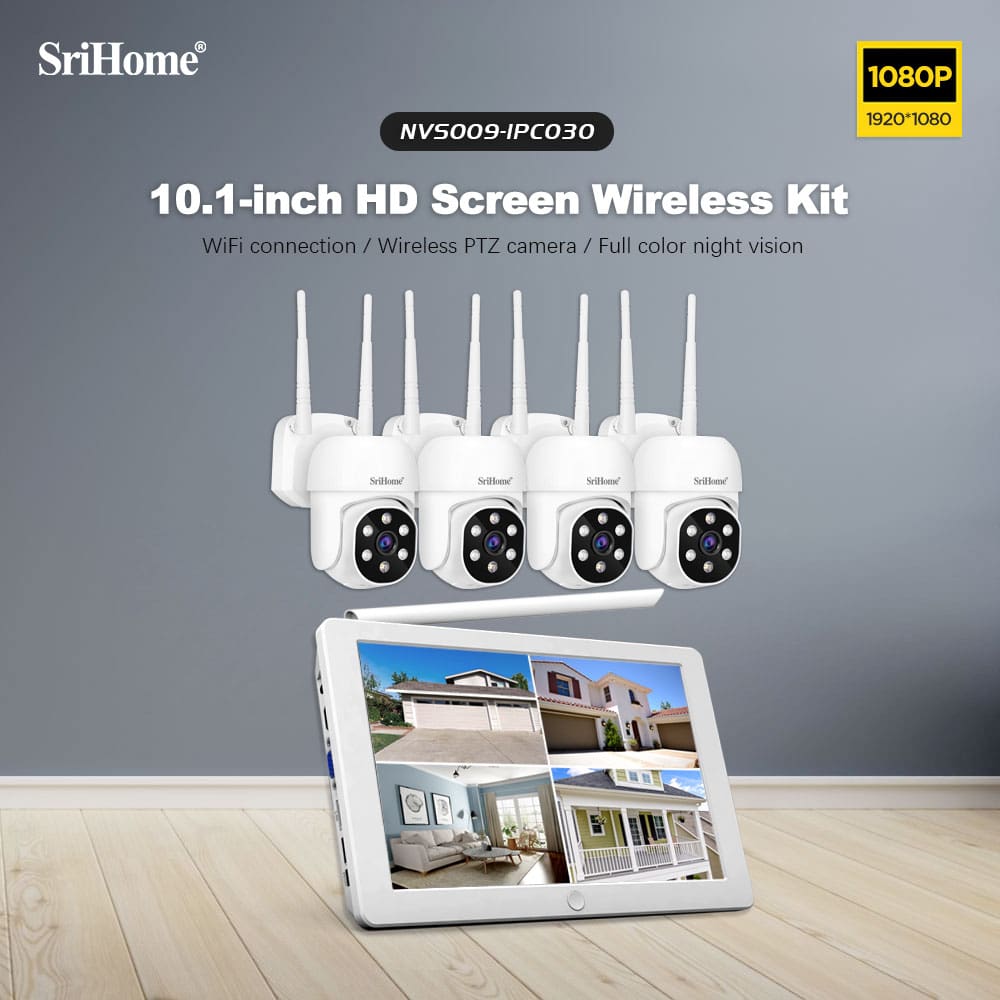

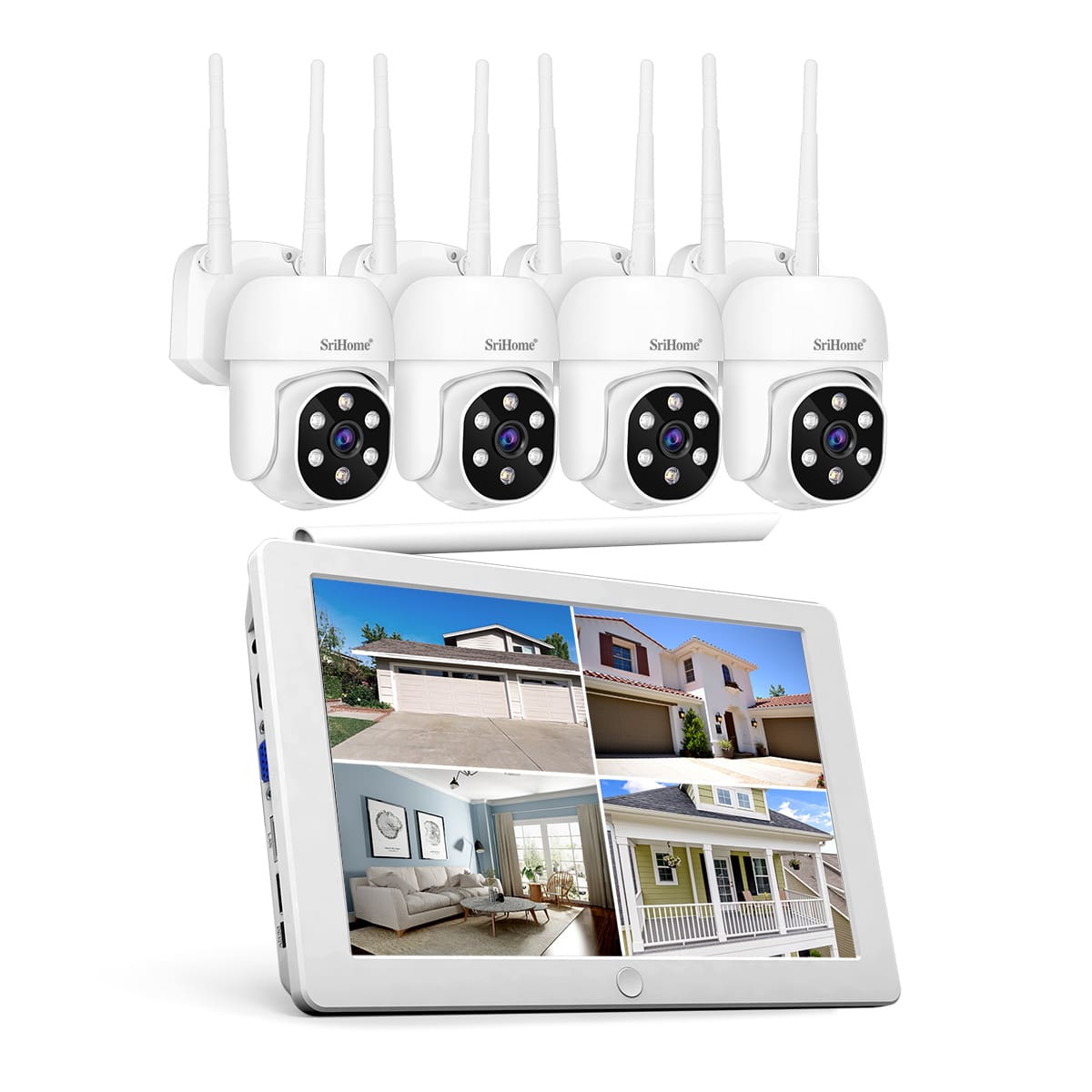

Model: NVS009-IPC030 Wireless Kit

• 1 × NVS009 WiFi NVR with 10.1″ Screen
• 4 × IPC030 Wireless Cameras (Expandable to 8)
• 1 × 12V 2A Power Adapter (NVR)
• 4 × 5V USB Power Adapters (Cameras)
• 5 × Screw Packs
• 1 × User Manual
• 1 × Network Cable

Ideal For

• Homes & apartments
• Offices & shops
• Warehouses
• Small businesses
• Indoor & outdoor surveillance
